TS33 - Three-phase Fully Automatic Test System with Reference Standard and Integrated Current and Voltage Source

Our competence can give you only the best:

• High performance: 3x600V, 3x120A, class up to 0.02%, 0.04% (meter) or 0.1% (source)
• Huge output power and low weight: only 22kg (48lbs) in portable case
• Quick measurements of power quality parameters
• Advanced functions but easy to use
• Automatic tests of energy meters and PT (VT), CT transformers
• Manual operations and fully automatic procedures for calibrating and testing
• Professional service and support (it doesn't matter if you have a complex or trivial issue)
• Low price in comparison to the best performance

Read the Data sheet and the rest of the website to know all functions of the TS33 Three-phase Fully Automatic Test System with Reference Standard and Integrated Current and Voltage Sourced. You will find there information about:

Wide range and high accuracy of outputs:

• 3-phase voltages: 0.0500-600.00V (meter) 20.00-600.00V (source)

• 3-phase currents: 1.000mA-120.000A (meter & source)

• phase shift and angles between voltages: 0.00-360.00 degrees
• frequency range: 40-70Hz (meter) 45-65Hz (source)
• impulse output: up to 210kHz

Wide range and high accuracy of inputs:

• impulse inputs: 2 inputs up to 210kHz for energy meters testing

Advanced functions:

• automatic error calculation of calibrated or tested devices
• measurement up to 63rd harmonics
• generation up to 63rh harmonics
• setting shapes like phase fired, triangle and burst

Other advantages:

• independent electronic compensated clamps allow calibration, service, later purchase without factory return of the device and interchange of clamps between different TS33 Working Standard
• powering from: line 90-264V/47...63Hz AC
• light weight: 22kg (48lbs)
• large 7″ 800x480 LCD colour display with touch screen easy to use with gloves
• screen capture and screen printing function
• USB, Ethernet and Bluetooth interface for printer, PC computer, tablet or Internet communication
• up to 32GB SD memory card for data
• measurement reports and printscreens printing on site by the wireless printer
• system configuration can be update at any time
• producer warranty
• Calibration Certificate

TS33 Three-phase Fully Automatic Test System with Reference Standard and Integrated Current and Voltage Source uses large 7 inch LCD display with touch panel for setting and presenting measurements. TS33 is able to save measurement data on SD card, save a BMP screen capture and print measurement report directly to Bluetooth printer. Analyzer can be also connected by USB, Bluetooth or LAN with PC computer or Tablet and setting by TS PC-Soft.

TS33 is an universal device and can be used as a:

• Three-Phase Power Network Analyzer (Basic function)
• Energy Meter Tester (Basic function)
• Power Calibrator (Basic function)
• Instrument Transformer Tester (TT function)

TS PC-Soft

The TS PC-Soft is a powerful software to expand capabilities of TS33 device of remotely connecting to device via USB, Bluetooth or Ethernet and enable use of a full array of testing and analysis. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.

• The TS PC-Soft is used to remote control and monitor of the device and allows to:
• measuring of all three phase power network parameters with digital, graph and oscilloscope display,
• verification of power network wiring with measure of power network parameters by displaying of: three phase voltage and current vector, neutral voltage and current vector, direction of vector rotation,
• testing of electricity meters directly on site,
• testing of LV and MV current CT and potential PT transformers simultaneously in three phases directly on site,
• measuring of power quality parameters,
• store, export to MS Excel, copy to system clipboard and print the result of measurements and tests.

TS33 set's:

	TS33 set Set contains: Three-phase Fully Automatic Test System with Reference Standard and Integrated Current and Voltage Source with Basic functionality, Power supply cord, Fuse (2 units), SD memory card (8GB), C091A plug for Calibrator inputs, EA36 set of safety cables (12pcs.), Operation manual, Warranty card, Calmet Calibration Certificate.	-
	TS33 option set 01 Most popular set of TS33 and typical accessories. All ready to use on site just after opening waterproof case. Set contains: TS33 set + CF106H + ET31 + EA36 + EA20 + CT100AC

Optional accessories:

	TT function –Testing of CT and PT Extending the TS33 functionality with CT and PT Transformers testing. This function enables performing of burden, ratio and phase error test both for CT and PT.
	EA30 - 120A cables with additional terminals Cables set for current up to 120A (6x1.0m length), with 18 pieces of replaceable terminals which make possible easy connection to different devices.
	EA20 - Additional accessories for safety cables up to 20A Additional accessories (handlers and terminals) for safety cables. It makes possible comfortable connecting to conductor rails of checked site
	CF106 - Universal scanning head Universal miniature scanning head for detecting (counting) impulses from inductive, LED and LCD energy meters. Additionally it enables counting of manually triggered impulses (Start/Stop push button function). Sometimes (when access is difficult) it is the only way to count pulses from inductive, LED and LCD meters. It can be easy mounted to meter by holder (CF106H option) or by self adhesive Velcro and it can also work "by hand" without mounting to meter.
	DR200D - Printer   Miniature thermal printer with Bluetooth and accumulator.
CT10AC - Electronic compensated clamps 12A	CT10AC - Electronic compensated clamps 12A Miniature, electronic compensated clamp for measuring current up to 12A (1 set).
	CT100AC - Electronic compensated clamps 120A  Miniature, electronic compensated clamps for measuring current up to 120A (1 set).

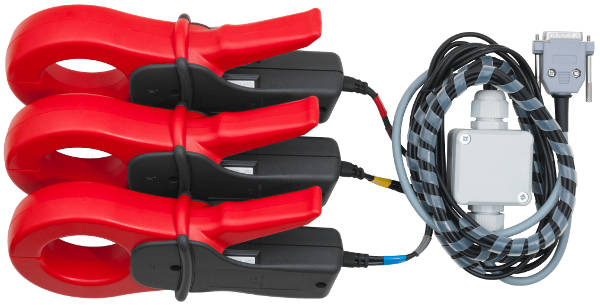

	CT1000AC - Electronic compensated clamps 1200A Electronic compensated clamps for measuring current up to 1200A (1 set).
	FCT3000AC.B - Flexible electronic compensated clamps 3000A Flexible clamp for measuring current in ranges 30/300/3000A in hard to reach places, (1 set).
	ALW2000AC.1 - primary current sensors 2000A 2000A (at 40kV) primary current sensors for LV and MV nets, recognized and used by many reputable manufacturers.
	VLW40kVC.1 - primary voltage sensors 40kV 40kV primary voltage sensors for MV nets.
	ET31 - Medium carrying case for additional accessories The IP67-rated case is watertight, waterproof, sandproof, dustproof, and can withstand harsh environments and shocks. Designed to transport and store accessories for the TS33 (ext. dim. 410x210x330mm).	-

Optional software:

	TS PC-Soft Software to expands capabilities of TS33 device of remotely connecting to device via USB, Bluetooth or Ethernet and enables to facilitate the full array of testing and analysis. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.	-

FAQ - Frequently Asked Questions:

1. Is it possible to use TS33 as a power source when measuring a meter on site without disconnecting it from the network?
2. What need to be done to use the TT functionality of the TS33 Three-Phase Automatic Testing System?
3. Is it possible to generate the previously measured harmonics in the mains using the TS33?ed signal using the TS33?
4. How to prepare a measurement report using TS PC-Soft
5. Is it possible to scan the barcode on the energy meter to the TS33 using a dedicated scanner?
6. How to test the influence of DC component and even harmonics on energy meter error using C300B power calibrator or TS33 automatic test system?
7. It is possible to test 2 energy meters simultaneously using the Calmet TS33 Testing System?
8. Does the Calmet TS33 Test System allow you to reproduce the shapes of special signals used for testing devices?

1. Is it possible to use TS33 as a power source when measuring a meter on site without disconnecting it from the network?

In this type of operation, MUT is connected to the power network and in parallel with MUT are voltage inputs Calmet TS33. The current circuit of MUT is disconnected from the load e.g. by opening circuit breaker or protective relay. The current circuit of MUT is connected directly to the current outputs of TS33.

Caution! Make sure that the MUT is disconnected from load side. TS33 is working in U,I mode.

2. What needs to be done to use the TT functionality of the TS33 Three-Phase Automatic Testing System?

To use the TT functionality, user need to purchase a license key that extends the TS33 functionality with TT functiion. The TT functionality enables performing of burden, ratio and phase error test both for CT and PT. The license key is generated remotely by the manufaturer and can be uploaded by the user at any time after purchasing the device or by the manufacturer when purchasing TS33.

3. Is it possible to generate the previously measured harmonics in the mains using the TS33?

It is possible. The TS33 automatic test system makes it possible to measure and record these distortions in the mains and then reproduce them in the generated voltage and current signal, simulating the behaviour of the power network. In this way, the behaviour of the measuring instruments can be checked in the laboratory under the same conditions as they were at the site where they were installed.

4. How to prepare a measurement report using TS PC-Soft?

The preparation of the measurement report is possible by performing the steps presented in the video below. Our TS PC-Soft program allows for a wide range of modifications to the final design of the report, according to the individual customer's needs.

How to prepare a measurement report using TS PC-Soft

5. Is it possible to scan the barcode on the energy meter to the TS33 using a dedicated scanner?

Yes, the Calmet TS33 Test System allows to scan the meter barcode using a dedicated scanner. This function becomes active after selecting the data editing window for the report.

6. How to test the influence of DC component and even harmonics on energy meter error using C300B power calibrator or TS33 automatic test system?

According to IEC 62052-11 (9.4.2.5), EN 50470-3 and OIML R 46-2 (2.3.6.5), as well as other
standards in the IEC 62052 and 62053 families, the influence of DC on the AC current circuit must be tested to ensure compliance with the aforementioned standards.

The meter under test is connected in series with a rectifier diode, and the balancing impedance is also connected with a diode set in the opposite direction. The test circuit  connection diagram is  shown in the picture below.

DC and even harmonics tests can be performed using the C300B calibrator and the TS33 automatic test system with external diodes.

The maximum current is limited to approximately 45 A due to power dissipation at the Schottky diodes. Diodes should be low-drop Schottky at high current and connected in parallel to limit power losses. Connection cables should be thick – at least 4 mm² or more. To increase accuracy, it is recommended that an external standard meter is used.

7. It is possible to test 2 energy meters simultaneously using the Calmet TS33 Testing System?

Yes, the Calmet TS33 allows you to perform error testing of two energy meters simultaneously using two pulse inputs. In the TS33, you can define two separate items in the meter type declaration window.

The course of the simultaneous test of two energy meters can be observed in one common window:

Test results are available for each counter separately.

8. Does the Calmet TS33 Test System allow you to reproduce the shapes of special signals used for testing devices?

Yes, in accordance with the OIML R46-2 standard, the TS33 Automatic Test System allows you to set and generate special shapes for voltages and currents, such as:

Waveform for the integral cycle load test (Burst fired waveform):

Burst fired waveform

45° phase fired waveform (odd harmonics):

90° phase fired waveform (odd harmonics):

135° phase fired waveform (odd harmonics):
