TE30 Lite - Portable Three Phase Working Standard and Power Quality Analyzer

TE30 Lite is our newest universal 4-in-1 device combining functions of:

• Three-Phase Power Network Analyzer (Basic function)
• Energy Meter Tester (Basic function)
• Instrument Transformer Tester (TT function)
• Power Quality Analyzer (REC function)

TE30 Lite Tester is a continuation of TE30 Lite (Three-Phase Power Network Analyzer and Tester of Electricity Meters and Instrument Transformers.

In one case, TE30 can offer all you need and more:

• High accuracy: three-phase working standard class 0.2%
• Wide input ranges: 0.05-600V and 0.01-3000A with clamps)
• Quick measurements, analysis and reports of ALL power quality parameters
• Automatic tests of energy meters and PT (VT), CT transformers
• Easy to carry, transportation case for TE30 Lite with accessories, ready to use on site just after opening the cover
• Professional service and support (it doesn't matter if you have a complex or trivial issue)
• Low price in comparison to the best performance

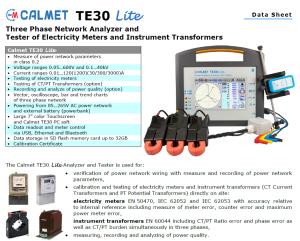

Read the Data sheet and the rest of the website to know all functions of the TE30 Lite Tester. You will find there information about:

Measurement function:

• electrical parameters displaying in table, vector, oscilloscope, bar and trend chart format
• energy meter testing of meter error, register and maximum power with all type of pulse outputs (disc mark, LED, LCD, S0)
• three-phase CT and PT (VT) transformers testing of ratio, phase shift and burden with easy wiring resistance calculation
• measuring up to 63rd harmonics and interharmonics
• calculating all type of active, reactive and apparent energy: P, P+, P-, Q, Q+, Q-, S, PH1, PH1+, PH1-, QH1, QH1+, QH1-
• recording and power quality analysis according to IEC 61000-4-30: dips, swells, interruptions, voltage unbalance

Other advantages:

• independent electronic compensated clamps allow calibration, service, later purchase without factory return of the device and interchange of clamps between different TE30 Lite units
• powering from: line 85...265V/47...63Hz AC or 5...12V/1.5A DC
• light weight: 1.6kg (3.5lbs)
• large 7″ 800x480 LCD colour display with touch screen easy to use with gloves
• screen capture and screen printing function
• USB, Ethernet and Bluetooth interface for printer, PC computer, tablet or Internet communication
• up to 32GB SD memory card for data
• measurement reports and printscreens printing on site by the wireless printer
• context help with circuit diagrams
• impulse input and output up to 200kHz with automatic constants calculating in imp/kWh, imp/Wh, Wh/imp and Hz in all type of powers
• system configuration can be updated any time
• producer warranty
• calibration certificate

TE30 Lite Portable Three-Phase Working Standard uses large 7 inch LCD display with touch panel for setting and presenting measurements. TE30 Lite is able to save measurement data on SD card, save a BMP screen capture and print measurement report directly to Bluetooth printer. Analyzer can be also connected by USB, Bluetooth or LAN with PC computer or Tablet and setting by TE30-PC Soft.

TE30 Lite is an universal device and can be used as a:

• Three-Phase Power Network Analyzer
• Energy Meter Tester
• Instrument Transformer Tester
• Power Quality Analyzer IEC 61000-4-30

Three-Phase Power Network Analyzer

TE30 Lite Tester is used to measure and refresh all power network parameters in real time. Data can be displayed in four different ways: table, vectors diagram, oscilloscope diagram and harmonics in bar and table format.

TE30 Lite - Three Phase Working Standard - Table Display	Table Display function is used for indicating all relevant parameters of three phase power network. The actual value of parameter helps to analyse circuit condition like: voltage missing, current missing, current reversal, asymmetry, etc.
TE30 Lite - Three Phase Working Standard - Vectors Display	Vectors Display function is used for verification of power network wiring and meter connection. Three orientation of vectors can be chosen. Additionally the voltage unbalance (voltage asymmetry), phase sequence, neutral voltage and neutral current is calculated.
TE30 Lite - Three Phase Working Standard - Oscilloscope Display	Oscilloscope Display function is used for displaying the waveform of voltage and current change in time. Six parameters and 1, 2 or 4 periods can be displayed at the same time (picture presents an example waveform of 1-phase Switching Power Supply input voltage and current).
TE30 Lite - Three Phase Working Standard Harmonic - Measurement Bar TE30 Lite - Three Phase Working Standard Harmonic - Measurement Table	Harmonic Measurement function is used for measuring amplitude and phase of harmonic in voltage, current, active power and reactive power up to 63rd harmonic. The measured harmonic can be displayed in tabular and bar format. Total harmonic distortion THD, total distortion factor TDF, crest factor CF, total interharmonic distortion TID will be displayed as additional information about a form of analysed voltage and current.

Energy Meter Tester

TE30 Lite Tester offers automatic and easy to use function for energy meter testing. TE30 Lite can be used to test error, test register and Pmax test directly on site with used load. All functions can measure energy for active, reactive and apparent power P, P+, P-, Q, Q+, Q-, S and energy for the first harmonic of active and reactive power PH1, PH1+, PH1-, QH1, QH1+, QH1-.

TE30 Lite - Three Phase Working Standard Meter - Error Test	Meter error calculating (partial errors, average error, standard deviation) directly in [%] with: - method of settings time of measurements or number of impulses, - automatic identification meter constant, - automatic determining measurement time or number of pulses.
TE30 Lite - Three Phase Working Standard - Register Testing	Register testing for calculating of register error directly in percentage. Three registers can be verified at the same time and any combination of measured power can be chosen.
TE30 Lite - Three Phase Working Standard - Maximum Power	Maximum power measuring for testing of maximum power (demand) meters.
Measurement data can be visualized in form of trend chart or table and are easy to save, read in the future and print.
TE30 Lite - Three Phase Working Standard Meter - Error Trend
TE30 Lite - Three Phase Working Standard Meter - Error Table

Instrument Transformer Tester (TT function)

TE30 Lite Tester can be used for automatic testing instrument transformers like LV and MV current CT and potential PT (VT) directly on site.

TE30 Lite - Three Phase Working Standard - Burden Test	Burden Test function is used for calculating of current transformer CT and potential transformer PT burden directly in percentage (Percent Nominal Load) simultaneously in three phases. Calculating of phase shift of load is enabled. For easiest measurements, data from calculation of wiring and fuse resistance can be included into burden error.
TE30 - Three Phase Working Standard - CT Ratio Test	CT Ratio Test function is used for calculating of current transformer CT ratio and phase shift error directly in percentage simultaneously in three phases. PT Ratio Test function is used for calculating of potential transformer PT ratio and phase shift error directly in percentage simultaneously in three phases.

Power Quality Analyzer IEC 61000-4-30 (Rec Function)

For easy real time measurements of power quality a standard function Power Network Analyzer can be useful.
Additionally special function Trend Chart Display can easy visualize of measurement result in real time mode.

TE30 Lite - Three Phase Working Standard - Trend Chart Display	Trend Chart Display function is used for displaying the changes in time of all relevant parameters of three phase power network. Analyser can store all parameters averaged in 1-100 seconds step time. User can display simultaneously up to 3 trend charts of any stored parameters.
For advanced and long term analyse of power quality TE30 offers a Recording function. Recording function is used for registration of all network parameters and additionally for measure dips, swells, interruptions, interharmonics, signal voltages and flicker. Data with time stamp are stored in the SD card (up to 32GB) for archive and further analyse in TE30 PC-Soft program. It is able to check for EN 50160 compatibility or for individual users requirements.
TE30 Lite - Three Phase Working Standard - Recording Parameters
TE30 Lite - Three Phase Working Standard - Recording Mode
TE30 Lite -Three Phase Working Standard - Recording Analysis

TE30-PC Soft

The TE30-PC Soft is a powerful software to expand capabilities of TE30 Lite device of remotely connecting to device via USB, Bluetooth or Ethernet and enable use of a full array of testing and analysis. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.

The TE30-PC Soft is used to remote control and monitor of the device and allows to:
• measuring and recording of all three phase power network parameters with digital, graph and oscilloscope display,
• verification of power network wiring with measure and recording of power network parameters by displaying of: three phase voltage and current vector, neutral voltage and current vector, direction of vector rotation,
• testing of electricity meters directly on site,
• testing of LV and MV current CT and potential PT transformers simultaneously in three phases directly on site,
• measuring of power quality parameters according to IEC 61000-4-30,
• store, export to MS Excel, copy to system clipboard and print the result of measurements and tests.

TE30 Lite set's:

TE30 Portable Three-Phase Working Standard and Power Quality Analyzer - set	TE30 Lite set Set contains: TE30 Lite Three-Phase Working Standard and PQ Analyzer with Basic function, Power supply with power cord, SD memory card (8GB), Operation manual, Warranty card, Calmet Calibration Certificate.
TE30 Lite Portable Three-Phase Working Standard and Power Quality Analyzer option 01	TE30 Lite option set 01 Most popular set of TE30 Lite and typical accessories. All ready to use on site just after opening waterproof case. Set contains: TE30 Lite set + CF106H + EA23 + EA35 + CT100AC + ET30 + Calmet TE30 PC Soft.

Optional accessories:

TT function	TT function –Testing of CT and PT Extending the TE30 Lite functionality with CT and PT Transformers testing. This function enables performing of burden, ratio and phase error test both for CT and PT.
REC function	REC function - Recording of power network parameters Extending the TE30 Lite functionality with recording of power network parameters. The recorded parameters can be chosen individually or automatically acc. to EN 50160 standard.
CF106 - Universal scanning head	CF106 - Universal scanning head Universal miniature scanning head for detecting (counting) impulses from inductive, LED and LCD energy meters. Additionally it enables counting of manually triggered impulses (Start/Stop push button function). Sometimes (when access is difficult) it is the only way to count pulses from inductive, LED and LCD meters. It can be easy mounted to meter by holder (CF106H option) or by self adhesive Velcro and it can also work „by hand” without mounting to meter.
DR200D printer	DR200D - Printer Miniature thermal printer with Bluetooth and accumulator.
EA35 - Set of safety measurement cables	EA35 - Set of safety measurement cables 4pcs of cables for voltage.
EA23 - Additional accessories for safety cables 20A	EA23 - Additional accessories for safety cables 20A Additional accessories (handlers and terminals) of safe cables. It makes possible comfortable connecting to conductor rails of checked site.
CT100AC - Electronic compensated clamps for measuring current up to 120 A (1 set)	CT100AC - Electronic compensated clamps 120A Miniature, electronic compensated clamps for measuring current up to 120A (1 set).
CT1000AC.B - Electronic compensated clamps 1200A	CT1000AC.B - Electronic compensated clamps 1000A Electronic compensated clamps for measuring current up to 1000A (1 set).
FCT3000AC.B - Flexible electronic compensated clamps 3000A	FCT3000AC.B – Flexible electronic compensated clamps 3000A Flexible clamp for measuring current in ranges 30/300/3000A in hard to reach places, (1 set).
ALW2000AC - primary current sensors 2000A	ALW2000AC - primary current sensors 2000A 2000A (at 40kV) primary current sensors for LV and MV nets, recognized and used by many reputable manufacturers.
VLW40kVC - primary voltage sensors 40kV	VLW40kVC - primary voltage sensors 40kV 40kV primary voltage sensors for MV nets.
CC11 - Single phase AC current source	CC11 - Single phase AC current source Single phase AC current source class 0.2 with signal frequency equal to 50/60Hz and with phase shift 0° or 180° relative to the supply voltage. The CC11 enables to generate current in range up to 5A at the supply voltage 85..264V.
EL10 - Phantom load	EL10 - Phantom load The EL10 is single phase AC current source and is used to force the current flow up to 5A through current coils of meters without necessity to disconnect tested meter
ET30 - Transportation case	ET30 - Large transportation case IP67 case is watertight, waterproof, sand-proof, dustproof and able to withstand harsh environments and shocks. Able to protect TE30 Lite Analyser and some accessories (ext. dim. 569x425x215mm).
ET32 - Transportation case	ET31 - Medium transportation case IP67 case is watertight, waterproof, sand-proof, dustproof and able to withstand harsh environments and shocks. Able to protect some of TE30 Lite accessories (ext. dim. 410x210x330mm).
ET32 - Transportation case	ET32 - Small transportation case IP67 case is watertight, waterproof, sand-proof, dustproof and able to withstand harsh environments and shocks. Able to protect some of TE30 Lite accessories (ext. dim. 305x270x144mm).
AD100EXT Powering extension	AD100EXT – Powering extension Extension for powering TE30 Lite from measurement network.

Optional software:

TE30 Lite PC Soft

TE30-PC Soft Software to expands capabilities of TE30 Lite device of remotely connecting to device via USB, Bluetooth or Ethernet and enables to facilitate the full array of testing and analysis. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.

-

FAQ - Frequently Asked Questions:

1. What should be done to use the REC (network parameters recording) and TT (transformer testing) functionalities) of the TE30 Lite testers?
2. What are the main differences between the TE30 and the TE30 Lite?

1. What should be done to use REC (network parameters recording) and TT (transformer testing) functionalities of the TE30 Lite tester?

To use the REC or TT functionality, user need to purchase a license key that extends the TE30 Lite functionality with the REC or TT function (or both).

The REC functionality enables the measurement, recording and analysis of power quality parameters.

The TT functionality enables performing of burden, ratio and phase error test both for CT and PT. The license key generated remotely by the manufacturer and can be uploated by the user at any time after purchasing the device or by the manufacturer when purchasing the TE30 Lite.

2. What are the main differences between the TE30 and the TE30 Lite?

The TE30 Portable Three-Phase Workiing Standard and Power Quality Analyzer is manufactured in the 0.1% or 0.05% class, while TE30 Lite Portable Three-Phase Working Standard and Power Quality Analyzer is available in the 0.2% class.

The TE30 Portable Three-Phase Working Standard and Power Quality Analyzer enables direct current measurement up to 12A, while TE30 Lite enables current measurement up to 3000A with clamps only (depending on the selected optional measuring clamps).
